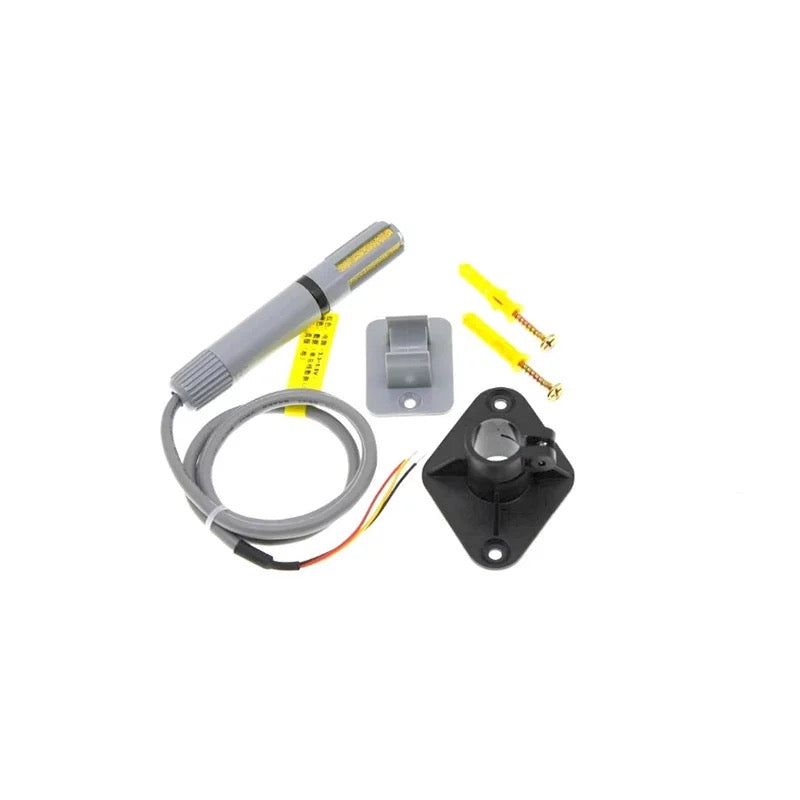

RS485 Digital Temperature & Humidity Sensor AM2305 Wired

Description:

AM2305B temperature humidity sensor

1. Ultra-low power consumption, long transmission distance, fully automatic calibration, capacitive humidity sensor, complete interchangeability, standard digital single bus output, excellent long-term stability, high precision temperature sensor.

2. AM2315 humidity sensor digital temperature and humidity module is a temperature and humidity composite sensor containing calibrated digital signal output, including a capacitive humidity sensor and a high precision temperature sensor, and connected to a high-performance 8-bit microcontroller.

3. Standard single bus interface makes system integration easy and fast.Ultra-small size, very low power consumption, signal transmission distance up to 20 meters, making it the best choice for all kinds of applications and even the most demanding applications
4. Sensor type: high-precision integrated temperature and humidity sensor
5. Response time: temperature: 5s, humidity: 5s 1/e (63%)

Specification:
1.Temperature: -40 - +80℃
2.Humidity: 0--99.9%RH
3.Shell material: PC plastic
4.Power supply: DC: 3.3~5.5V
5.Operating temperature range: -40-- +80℃
6.Weight:110g
7.MOQ:5PCS
8.Response time: temperature: 5s
9.humidity: 5s 1/e (63%)
10.Color:As picture
