Sold outMinew G1 Industrial Bluetooth & Wi-Fi IoT Gateway for Beacons
MiNewOut of stock

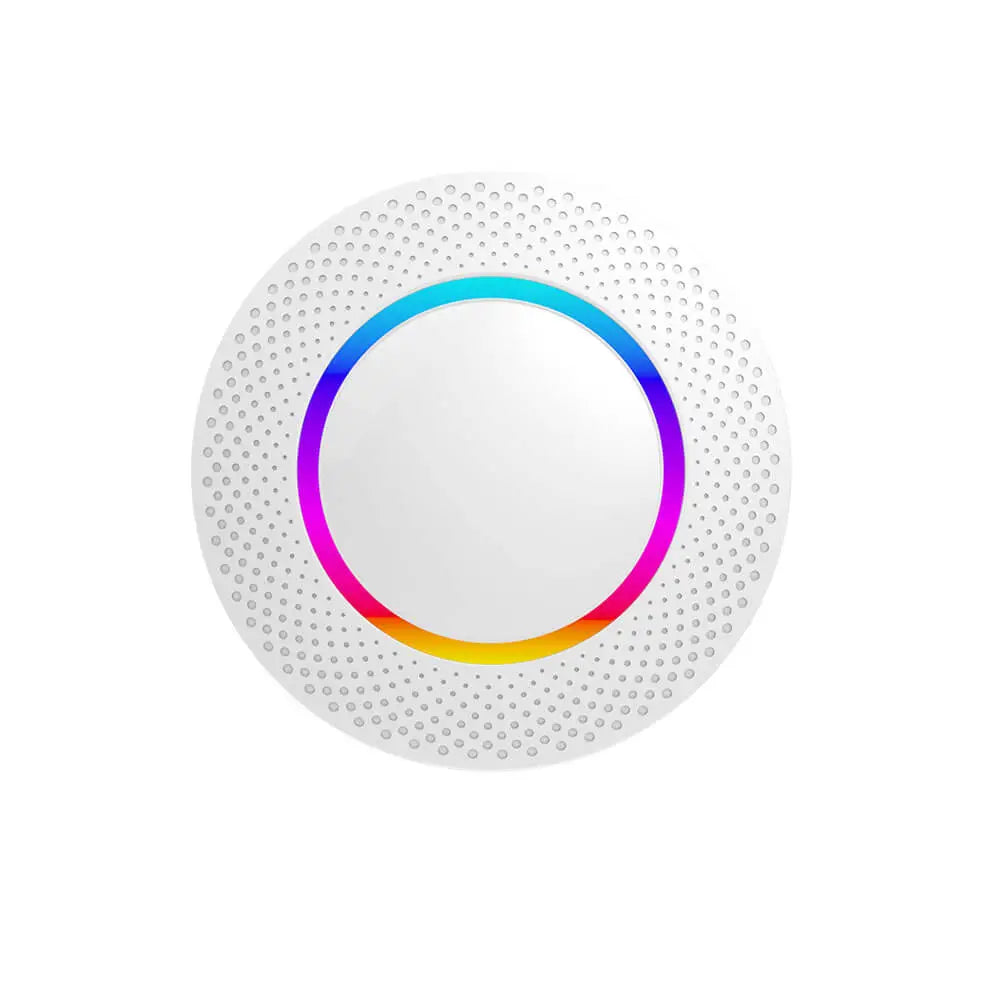

Minew G1 Industrial Bluetooth & Wi-Fi IoT Gateway for Beacons

SAR 135
excl. VAT· +SAR 20 VAT (15%) at checkout· VAT added at checkout · Free shipping over SAR 100 in Saudi Arabia
Highlights
Fast delivery across all of Saudi ArabiaEasy returns within 7 days100% genuine products from the official Tefco storeOfficial VAT invoice with every order
Request a Quote
2-year warranty Ships in 1–2 days Local support

Overview

The Minew G1 is a fast, secure Bluetooth LE to Wi-Fi IoT gateway. It collects data from Bluetooth beacons, sensors and other BLE devices within about 300 metres (open area) and sends it to your server or cloud over Wi-Fi or Ethernet, using HTTP or MQTT with SSL/TLS encryption. It works with AWS, Azure and Google IoT cloud platforms, making it a strong choice for asset tracking, indoor positioning and smart-building projects.

Key Features

  • Bluetooth 5.0 + Wi-Fi: Powerful Wi-Fi CPU and Bluetooth 5.0 chipset.
  • Up to 300 m scan coverage: Covers large open areas with one gateway.
  • Fast data handling: Receives about 400 broadcast packets per second.
  • Up to 300 Mbps Wi-Fi: 802.11 b/g/n, 2T2R.
  • Secure transmission: HTTP (SSL/TLS), MQTT (SSL/TLS & proxy), TCP; WPA/WPA2-PSK and WPA2-Enterprise (EAP).
  • Cloud ready: Supports AWS, Azure and Google IoT cloud platforms.
  • Certified to EN 18031: Cyber-security standard for connected radio equipment.
  • Easy installation: Ceiling/wall design with metal fixing bracket and screws included.

Ideal For

Asset tracking · Indoor positioning · Warehouses and logistics · Hospitals · Smart offices and buildings

Specifications

Bluetooth Bluetooth 5.0 LE, 2.4–2.4835 GHz, GFSK, up to 18 dBm
Bluetooth sensitivity -108 dBm @ 1 Mbps
Scan coverage About 300 m radius (open area)
Packet handling About 400 broadcast packets per second
Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz, up to 300 Mbps (2T2R)
Network protocols HTTP (SSL/TLS), MQTT (SSL/TLS & proxy), TCP
Wi-Fi security WPA-PSK / WPA2-PSK, WPA-EAP / WPA2-EAP, TKIP
Power supply DC 5.0 V (±5%), max 5.5 V
Size Ø 150 × 36 mm
Weight 155 g
Colour White
Humidity Max 95% RH, non-condensing
Storage temperature -40 °C to 85 °C
Certification EN 18031

What's in the Box

  • Minew G1 gateway
  • 1 × USB cable
  • Metal fixing bracket and screws

FAQ

How far can it detect beacons?
About 300 metres in an open area. Walls and obstacles reduce the range.

Which cloud platforms does it support?
AWS, Azure and Google IoT, plus your own server over HTTP or MQTT.

How is it powered?
With 5 V DC through the included USB cable. Ask us about PoE-powered versions if you need power over Ethernet.
