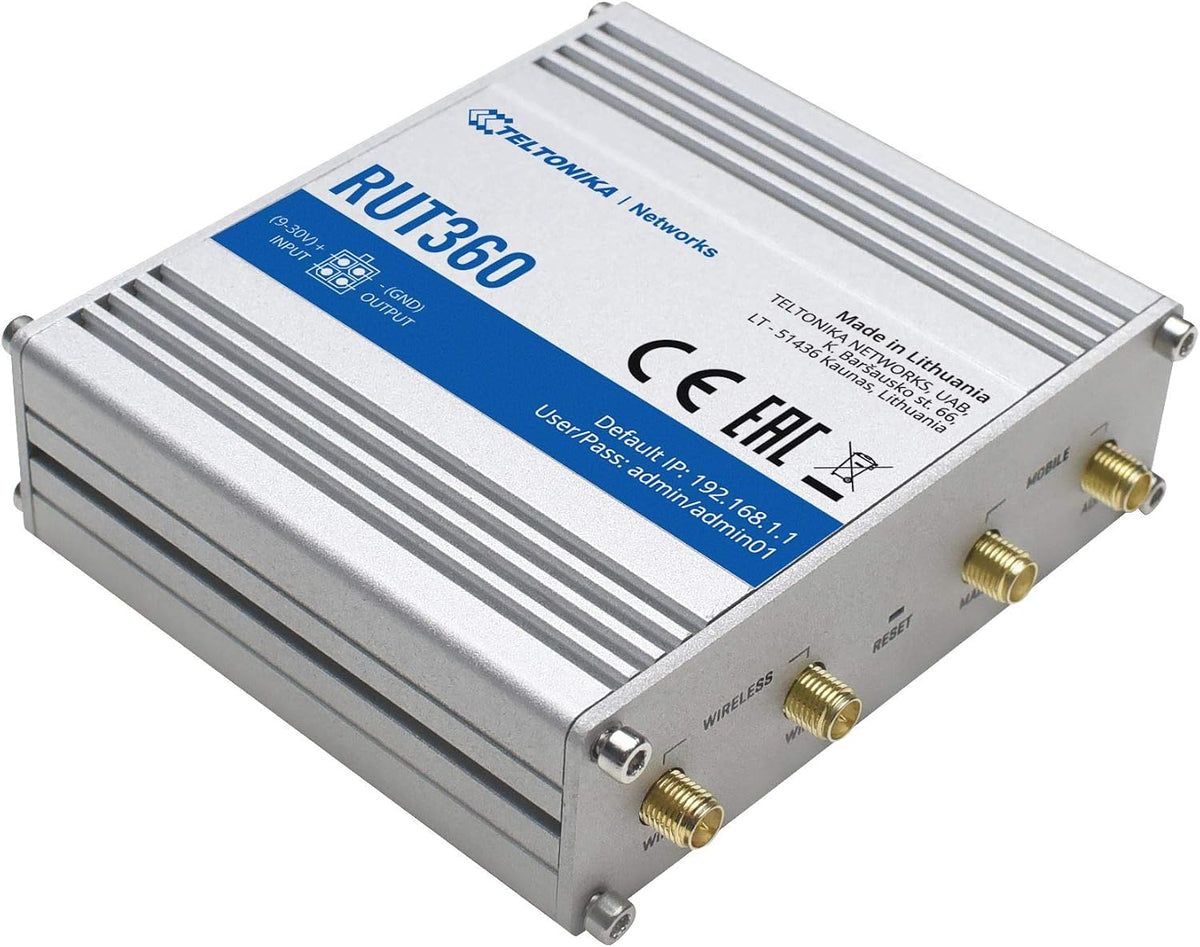

Teltonika RUT360 LTE Cat 6 Industrial Cellular Router

Reliable 4G Connectivity for Industrial and IoT Applications

The Teltonika RUT360 is a compact industrial cellular router designed to provide reliable internet connectivity for industrial equipment, remote sites, security systems, point-of-sale terminals, smart buildings, and IoT deployments.

It combines 4G LTE Cat 6 connectivity with carrier aggregation, Wi-Fi, two Ethernet ports, automatic WAN failover, configurable digital input and output, advanced RutOS networking features, and compatibility with Teltonika Remote Management System.

Its durable aluminium housing, wide 9-30V DC input, and industrial operating-temperature range make it suitable for professional installations in demanding environments.

Key Features

4G LTE Cat 6

LTE Cat 6 technology provides mobile download speeds of up to 300Mbps with carrier aggregation, subject to mobile-network availability, operator support, signal strength, and data-plan limitations.

The router can fall back to supported 3G networks when LTE service is unavailable.

Wi-Fi Connectivity

The RUT360 includes a 2.4GHz IEEE 802.11b/g/n wireless access point for connecting phones, computers, controllers, terminals, and other compatible Wi-Fi devices.

Supported Wi-Fi modes include:

• Access Point mode
• Station mode
• Hotspot functionality

Dual Ethernet Ports

Two 10/100Mbps Ethernet ports provide wired connectivity:

• 1 × LAN port
• 1 × WAN port configurable as LAN

This allows the router to connect industrial equipment while also using a wired internet connection as the primary or backup WAN source.

Automatic WAN Failover

The router can automatically switch between available internet connections to help maintain connectivity when the primary WAN connection fails.

Failover options may include cellular, wired WAN, or Wi-Fi WAN, depending on the configured network setup.

Teltonika RutOS

The RUT360 runs on Teltonika RutOS, an OpenWrt-based operating system offering advanced networking, monitoring, security, firewall, VPN, and remote-management functionality.

Teltonika RMS Compatible

Compatibility with Teltonika Remote Management System enables authorized users to remotely monitor, configure, troubleshoot, and access deployed routers.

An RMS licence or credit package is not included unless specifically stated and may be purchased separately.

Digital Input and Output

The four-pin power connector provides:

• 1 × Configurable digital input
• 1 × Digital open-collector output

These connections can be used for equipment monitoring, alarm inputs, sensor events, remote relay control, and other automation functions.

External Antennas

External mobile and Wi-Fi antenna connectors provide flexible antenna positioning to help improve signal reception.

Industrial Power Input

The RUT360 supports a wide 9-30V DC input range, making it suitable for industrial power systems, control cabinets, vehicles, remote equipment, and fixed installations.

Durable Aluminium Housing

The compact aluminium enclosure provides durability while allowing installation in limited spaces. Optional DIN-rail and surface-mounting accessories may be used depending on the installation.

Recommended Applications

The Teltonika RUT360 is suitable for:

• Industrial automation
• Remote equipment connectivity
• Security and surveillance systems
• Point-of-sale terminals
• Digital signage
• Smart buildings
• Energy and utility monitoring
• Vending machines
• Automated kiosks
• Construction and temporary sites
• Transportation systems
• IoT and telemetry applications
• Cellular backup internet
• Remote office connectivity

Technical Specifications

• Brand: Teltonika Networks
• Model: RUT360
• Product type: Industrial cellular router
• Cellular technology: 4G LTE Cat 6 with 3G fallback
• Maximum theoretical LTE download speed: Up to 300Mbps
• Carrier aggregation: Supported
• SIM slots: 1 × Mini SIM
• Wi-Fi: IEEE 802.11b/g/n
• Wi-Fi frequency: 2.4GHz
• Wi-Fi modes: Access Point and Station
• Ethernet: 2 × 10/100Mbps RJ45 ports
• Ethernet configuration: 1 × LAN and 1 × WAN configurable as LAN
• Digital input: 1
• Digital output: 1 × Open collector
• Power input: 9-30V DC
• Power connector: Four-pin industrial connector
• Operating system: Teltonika RutOS
• Remote management: Teltonika RMS compatible
• Housing: Aluminium
• Dimensions: 100 × 30 × 85 mm
• Weight: Approximately 247 g
• Operating temperature: -40°C to +75°C
• Operating humidity: 10% to 90%, non-condensing
• Protection rating: IP30
• Mounting options: Flat-surface or optional DIN-rail mounting

Package Contents

Depending on the selected regional order code, the standard package may include:

• Teltonika RUT360 router
• Mobile antennas
• Wi-Fi antenna
• Power adapter
• Ethernet cable
• SIM adapter kit
• Quick Start Guide
• Product packaging

Power adapter, plug type, antennas, mounting accessories, and other package contents may vary by order code. Confirm the exact package before purchasing.

Product Lifecycle Notice

The RUT360 is a legacy EOL model that has been replaced by the Teltonika RUT361.

• End of ordering: September 13, 2024
• End of production: March 13, 2025
• Scheduled end of manufacturer support: June 13, 2030

Product availability is limited to remaining distributor stock. Customers planning new, long-term deployments should also consider the current RUT361 replacement model.

Important Information

• A compatible SIM card and active mobile data plan are required for cellular connectivity.
• Cellular bands and operator compatibility vary by regional hardware version.
• Confirm the order code, supported bands, local certifications, and operator compatibility before purchasing.
• Maximum advertised mobile speeds are theoretical; actual performance depends on coverage, network congestion, signal strength, antenna placement, carrier aggregation, and the selected data plan.
• The RUT360 supports 2.4GHz Wi-Fi and does not provide 5GHz Wi-Fi.
• Teltonika RMS requires separate activation, credits, or licensing unless included in the selected bundle.
• SIM card, mobile data package, RMS licence, external equipment, and optional mounting accessories are not included unless specifically stated.
• Professional installation is recommended for industrial power, digital I/O, antenna, and control-system connections.

Short Description

The Teltonika RUT360 is a compact industrial LTE Cat 6 router featuring mobile speeds up to 300Mbps, carrier aggregation, 2.4GHz Wi-Fi, dual Ethernet ports, automatic WAN failover, configurable digital I/O, RutOS, and Teltonika RMS compatibility.
