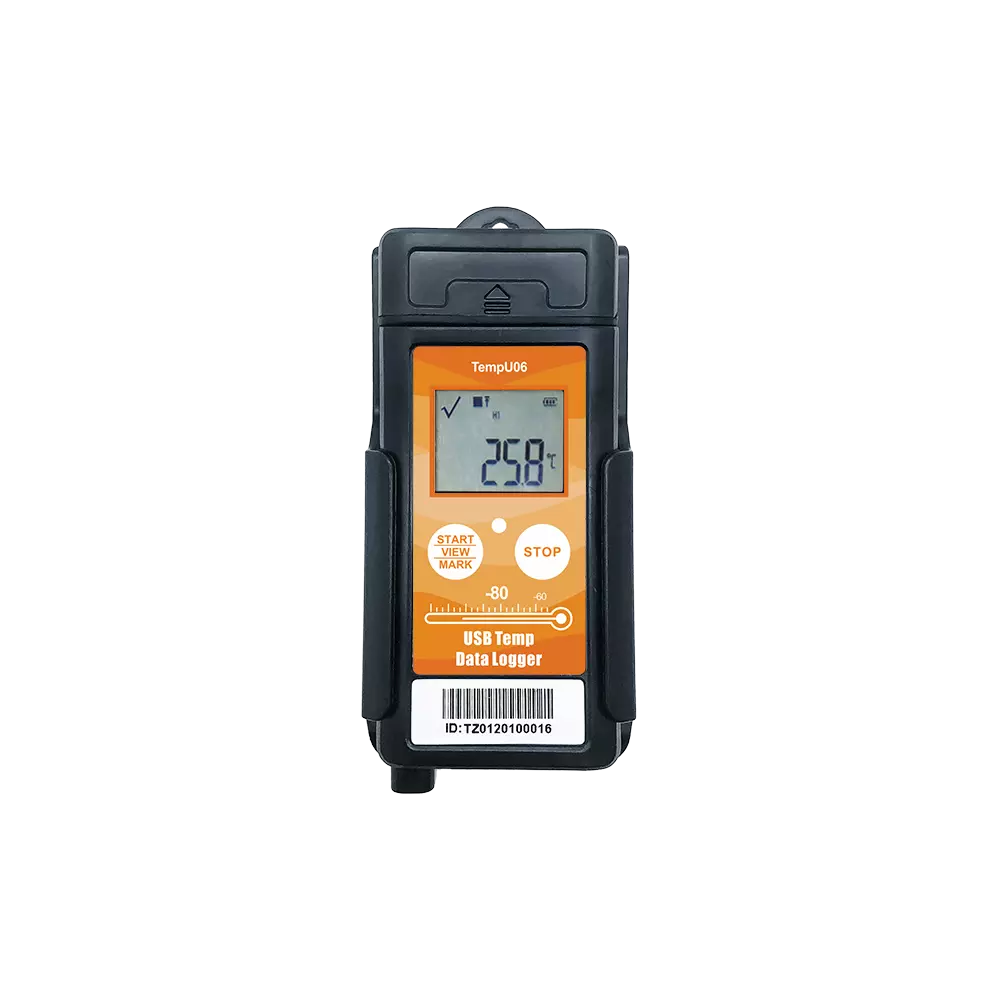

Tzone TZ-TempU06 Dry Ice Temperature Data Logger
Overview
The Tzone TZ-TempU06 is an ultra-low temperature data logger designed for shipments packed in dry ice, frozen pharmaceuticals and laboratory samples. The standard TempU06 has a built-in sensor that measures down to -80 °C (up to +70 °C) with ±0.5 °C accuracy, stores 32,000 readings, and creates PDF and CSV reports automatically when plugged into a computer by USB — no extra software needed to read the report.
Key Features
- Ultra-low range: -80 °C to +70 °C with the internal sensor — suitable for dry ice (about -78 °C).
- Accurate: ±0.5 °C with 0.1 °C resolution.
- 32,000 readings memory.
- Automatic PDF and CSV reports via USB 2.0.
- Large LCD screen with clear status indicators.
- Programmable: Logging interval 10 seconds to 18 hours (default 10 minutes); alarm limits and alarm delay adjustable.
- Push-to-start or timed start.
- Long battery life: Typically 1.5 years.
- IP65 protection.
- Compliance: FDA 21 CFR Part 11, CE, EN12830, RoHS, NIST-traceable calibration.
Ideal For
Dry ice shipments · Frozen vaccines and pharmaceuticals · Laboratory and biological samples · Ultra-low freezers
Specifications (TempU06, internal sensor)
| Sensor | Built-in temperature sensor |
| Temperature range | -80 °C to +70 °C |
| Accuracy / resolution | ±0.5 °C / 0.1 °C |
| Memory | 32,000 readings |
| Start mode | Push-to-start or timed start |
| Logging interval | Programmable 10 s – 18 h (default 10 min) |
| Alarm range | Programmable (default < 2 °C or > 8 °C) |
| Alarm delay | Programmable 0–960 min (default 10 min) |
| Report | Automatic PDF / CSV |
| Connectivity | USB 2.0 |
| Software | Temp (RH) Management Software for Windows (21 CFR Part 11 compliant) |
| Battery life | Typically 1.5 years |
| Protection | IP65 |
| Size | 115 × 50 × 20 mm |
| Weight | 100 g |
FAQ
How cold can it measure?
The internal sensor measures down to -80 °C — cold enough for dry ice. For even lower temperatures, Tzone offers external-probe versions (TempU06 L100 to -100 °C, L200 to -200 °C).
Do I need software to read the data?
No. Plug it into a computer by USB and it creates PDF and CSV reports automatically. Optional Windows software is available for advanced settings.
Is it reusable?
Yes, it is programmable and can be used again for new shipments.
