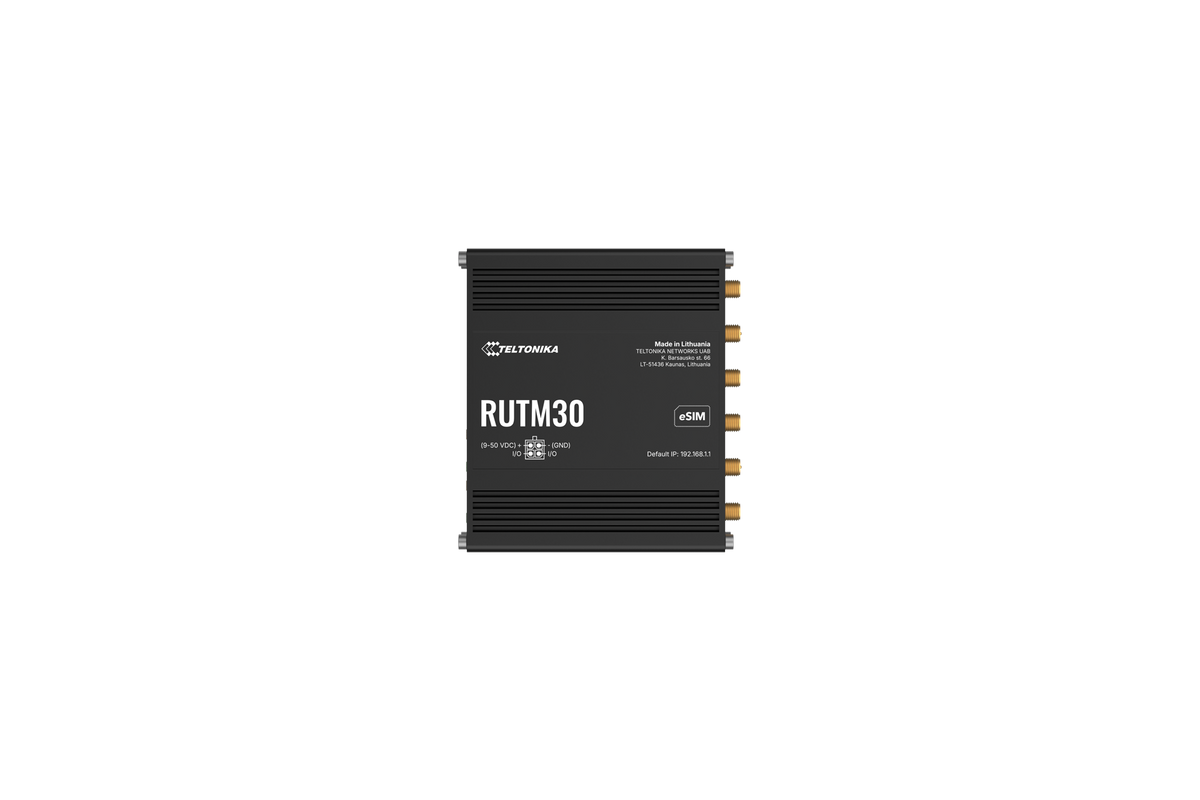

Teltonika RUTM30 Compact Industrial 5G Router with Dual SIM and eSIM

High-Speed 5G Connectivity in a Compact Industrial Design

The Teltonika RUTM30 is a compact industrial 5G router designed for data-intensive IoT, M2M, transportation, retail, security, and remote-connectivity applications.

It combines 5G SA and NSA connectivity, 4G LTE Cat 19 fallback, dual SIM slots, eSIM support, dual-band Wi-Fi 5, two Gigabit Ethernet ports, automatic failover, configurable digital I/O, RutOS, and Teltonika RMS compatibility.

Its compact aluminium enclosure and wide 9-50V DC input make it suitable for installations where available space is limited but high-speed, reliable connectivity is essential.

Key Features

5G SA and NSA Connectivity

The RUTM30 supports both Standalone and Non-Standalone 5G architectures, making it compatible with existing and next-generation mobile-network deployments.

It is designed to provide:

• High-speed mobile connectivity
• Low latency
• Reliable data transmission
• Improved capacity for demanding applications

Actual performance depends on the mobile operator, network coverage, signal strength, SIM plan, supported bands, and regional hardware version.

4G LTE Cat 19 and 3G Fallback

When 5G service is unavailable, the router can connect through supported 4G LTE Cat 19 or 3G networks, helping maintain connectivity across different coverage areas.

Dual SIM with Automatic Failover

Two physical SIM slots support operator redundancy and flexible connection-switching scenarios.

The router can automatically switch connections based on:

• Network availability
• Signal strength
• Data usage
• Roaming conditions
• Configured failover rules

Integrated eSIM Support

Compatible RUTM30 versions support eSIM based on the SGP.22 standard, allowing mobile profiles to be managed without replacing a physical SIM card.

eSIM service availability and profile compatibility depend on the selected product version and mobile operator.

Dual-Band Wi-Fi 5

The router supports IEEE 802.11ac Wi-Fi 5 on 2.4GHz and 5GHz bands, with wireless transmission rates up to 867Mbps.

Supported wireless features include:

• Access Point mode
• Station mode
• Dual-band operation
• MU-MIMO
• 802.11r fast roaming

Two Gigabit Ethernet Ports

Two RJ45 Gigabit Ethernet ports provide high-speed wired connectivity for industrial controllers, computers, point-of-sale terminals, cameras, switches, digital displays, and other network equipment.

Automatic Connection Failover

The RUTM30 can automatically switch between cellular, wired WAN, and available backup connections to help minimize downtime.

Configurable Digital I/O

Two shared configurable digital input/output connections are available through the four-pin power connector.

They can be used for applications such as:

• Equipment-status monitoring
• Door or cabinet alerts
• Alarm-input detection
• Relay control
• Automated event triggering

Wide 9-50V DC Input

The broad power-input range supports integration with different industrial, automotive, and fixed power systems.

The router can also be powered through passive PoE using the designated LAN1 port.

Important: Passive PoE is not compliant with IEEE 802.3af/at/bt standards. Only use compatible passive PoE equipment and the voltage specified by Teltonika.

Teltonika RutOS

The RUTM30 runs on Teltonika RutOS, providing advanced networking, firewall, VPN, monitoring, automation, and remote-management capabilities through a browser-based interface.

Advanced VPN Support

Supported secure networking options include protocols such as:

• IPsec
• OpenVPN
• WireGuard
• L2TP
• ZeroTier

Available protocols and functionality may depend on the installed firmware and software packages.

Teltonika RMS Compatible

Compatibility with Teltonika Remote Management System enables authorized users to remotely:

• Monitor router status
• Configure device settings
• Install firmware updates
• Access connected equipment
• Diagnose network problems
• Manage multiple deployed routers

RMS licences or credits are sold separately unless specifically included in the selected package.

Recommended Applications

• Industrial IoT and automation
• Mobile and fixed retail systems
• Point-of-sale terminals
• Digital signage
• Security and surveillance
• Transportation and fleet systems
• Smart-city infrastructure
• Remote offices
• Energy and utility monitoring
• Automated kiosks
• Construction sites
• Temporary networks
• Remote machinery
• Private mobile-network projects
• High-speed cellular backup

Technical Specifications

• Brand: Teltonika Networks
• Model: RUTM30
• Product type: Compact industrial 5G router
• Cellular technologies: 5G, 4G LTE and 3G
• 5G modes: SA and NSA
• LTE fallback: LTE Cat 19
• Physical SIM slots: 2
• eSIM: Supported on applicable versions
• eSIM standard: SGP.22
• Wi-Fi: IEEE 802.11ac Wi-Fi 5
• Wi-Fi bands: 2.4GHz and 5GHz
• Maximum Wi-Fi rate: Up to 867Mbps
• Wi-Fi technology: Dual-band MU-MIMO
• Ethernet: 2 × Gigabit RJ45 ports
• Digital I/O: 2 × shared configurable inputs/outputs
• Power input: 9-50V DC
• Passive PoE input: Supported through LAN1
• Operating system: Teltonika RutOS
• Remote management: Teltonika RMS compatible
• Management interfaces: WebUI, SSH, SMS utilities and RMS
• Housing: Aluminium
• Dimensions: 100 × 30 × 93.7 mm
• Weight: Approximately 319 g
• Reset button: Included
• Mobile and Wi-Fi antennas: External
• Mounting: Compatible with optional DIN-rail and surface-mounting accessories

Package Contents

Depending on the selected order code, the standard package may include:

• Teltonika RUTM30 5G router
• Mobile antennas
• Wi-Fi antennas
• Power adapter
• Ethernet cable
• SIM adapters
• Quick Start Guide
• Product packaging

Package contents, antennas, power adapter, plug type, eSIM support, frequency bands, and mounting accessories vary by regional order code. Confirm the exact product code before purchasing.

Important Information

• The official model name is RUTM30.
• A compatible SIM or activated eSIM profile and mobile data plan are required.
• Dual SIM does not mean two cellular connections are active simultaneously unless specifically supported by the configured operating mode.
• Cellular bands, eSIM functionality, and operator compatibility vary by regional hardware version.
• Confirm the order code, supported frequencies, local approvals, and operator compatibility before ordering.
• Advertised mobile and Wi-Fi speeds are theoretical maximums. Actual performance depends on coverage, network congestion, signal strength, antenna placement, connected equipment, and data-plan limitations.
• Passive PoE is not IEEE 802.3af/at/bt compliant. Connecting an incompatible PoE supply may damage the router.
• Teltonika RMS requires separate activation, licensing, or credits unless included in the selected bundle.
• SIM cards, mobile service, RMS licence, external equipment, and optional mounting accessories are not included unless specifically stated.
• Professional installation is recommended for vehicle power, passive PoE, digital I/O, antennas, and industrial control connections.

Short Description

The Teltonika RUTM30 is a compact industrial 5G router featuring 5G SA/NSA, LTE Cat 19 fallback, dual SIM, eSIM support, dual-band Wi-Fi 5, two Gigabit Ethernet ports, automatic failover, configurable digital I/O, RutOS, and RMS compatibility.
